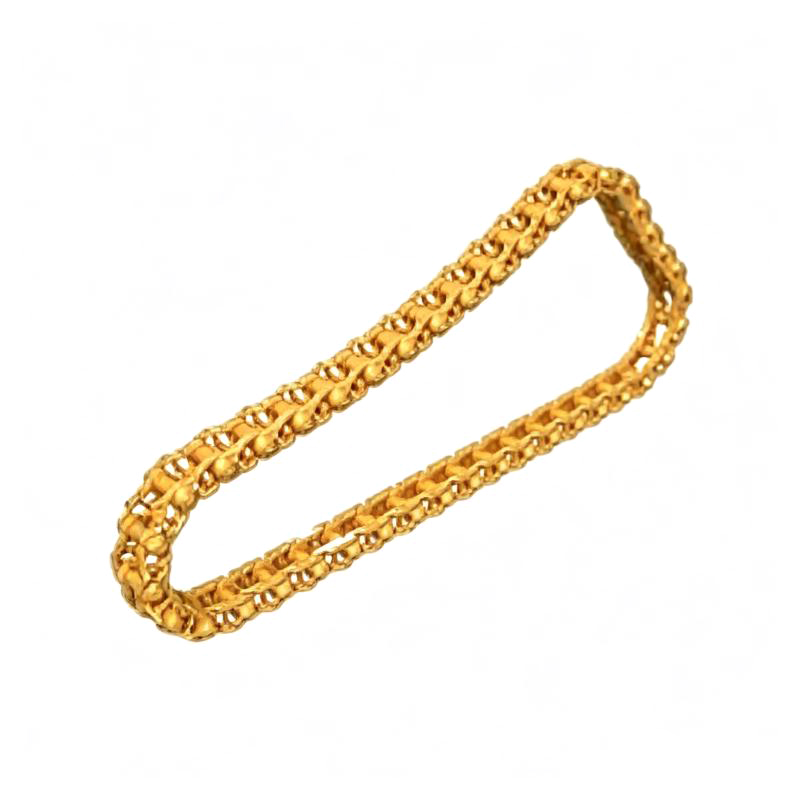

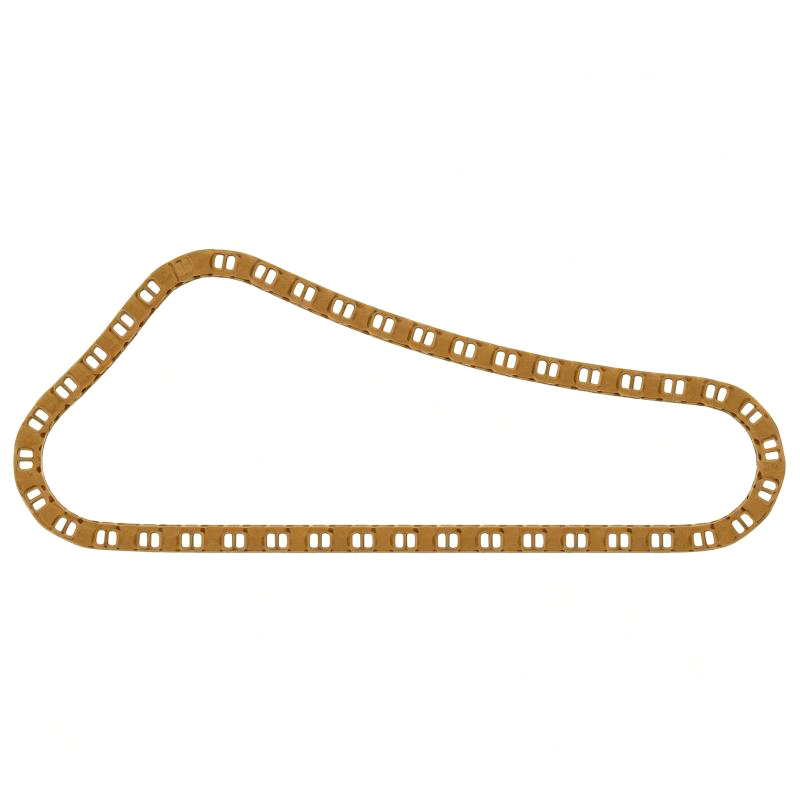

422-2666 Track Linkage Assembly

Cat® regular duty parts offer a competitive initial purchase price and an advantage over industry standards for the target application.

Features:
Regular load parts are backed by the standard Cat® Parts Warranty.
Conventional duty parts meet industry expectations for durability and technology.

Applications:
Regular load parts are designed for use in medium and light applications as well as applications with low utilization.
Refer to the owner’s manual or contact your local Cat dealer for more information.

Availability:



Inquire

Product Details

Compatible Models
Crawler bulldozer:	D7R II

Product Specifications
Track shoe bolt hole spacing C(mm):	204.1
Track shoe bolt hole spacing A(mm):	63
Chassis:	GD
Track Bolt Thread:	0.875
Pin Length (mm):	276
Track Reinforcement System:	Not Applicable
Swivel Bush Track (RBT):	No
Number of Sections:	41
Internal spacing of links at sprockets (mm):	97.2
Internal spacing between links at rollers (mm):	108.9
Number of track sections:	41
Link height (mm):	139.9
Outer link spacing (mm):	201.2
Grease Track Type:	Not Applicable
Rail to Pin Boss Outer Diameter (mm):	48.2
Bolt Bore Diameter (mm):	23.22
Rail to bushing OD (mm):	41.8
Bolt size (mm):	7/8
Main Bolt Thread:	0.875
Main link type:	5 Tooth Master
Wear sensor:	No
Track shoe bolt hole spacing B(mm):	146.1
Seals and lubrication type:	SALT
Pin retention system:	Press Fit
Bushing OD (mm):	79.16
