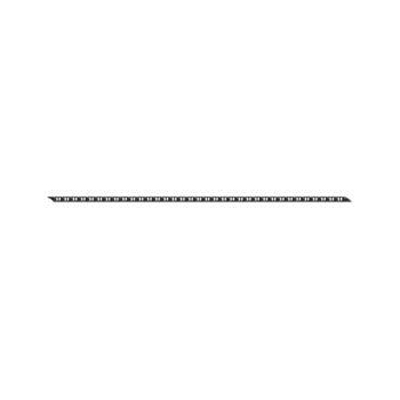

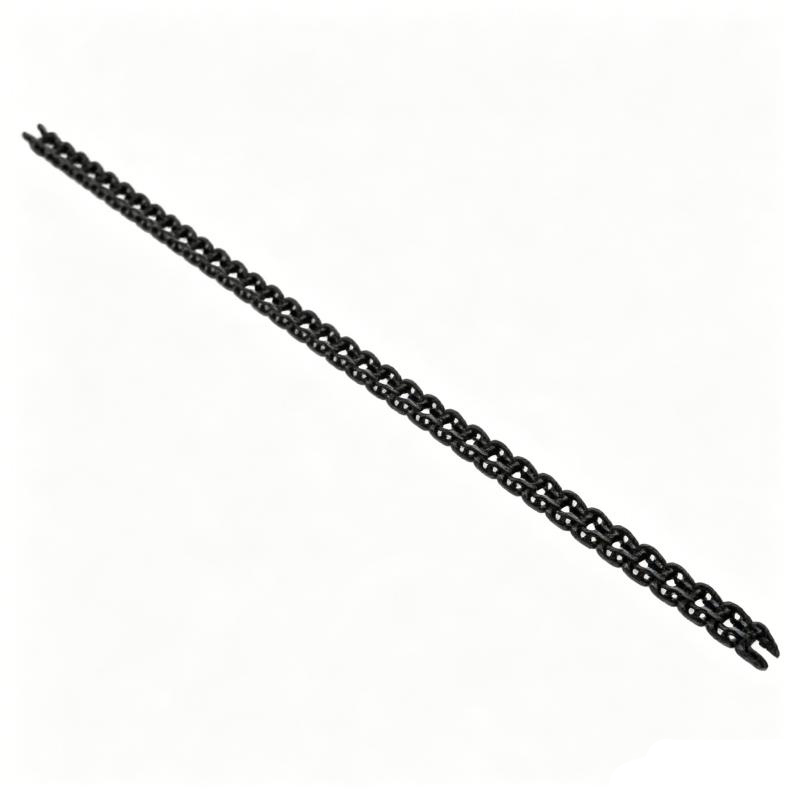

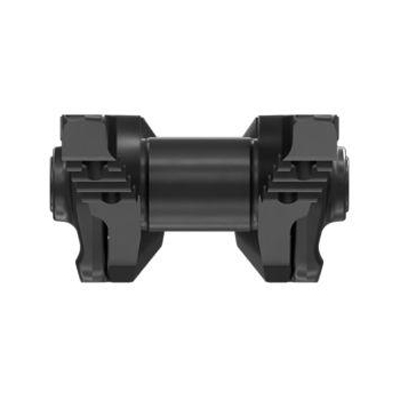

485-8810 36-Segment Track Linkage Kit


Cat® regular duty parts offer a competitive initial purchase price and an advantage over industry standards for the target application.

Features:
Regular load parts are backed by the standard Cat® Parts Warranty.
Conventional duty parts meet industry expectations for durability and technology.

Applications:
Regular load parts are designed for use in medium and light applications as well as applications with low utilization.
Refer to the owner’s manual or contact your local Cat dealer for more information.

Availability:
Product Specifications:
Main link type5 Tooth Master
Track shoe bolt hole spacing A(mm)76.2
Track shoe bolt hole spacing B(mm)133.5
Track shoe bolt hole spacing C(mm)171.45
Bushing Outer Diameter (mm)72.75
Internal spacing of links at rollers (mm)102.2
Seals and lubrication typeSALT
Grease Track TypeNot Applicable
Outer spacing of links (mm)182.8
Pin Length (mm)230.1
Rail to bushing OD (mm)39.2
Number of Sections36
Rail to Pin Boss Outer Diameter (mm)47.2
Track pitch (mm)202.81
Number of track sections36
Swivel Bush Track (RBT)No
Track Bolt ThreadM18
Main bolt threadM18
Internal spacing between links at sprockets (mm)87
Pin retention systemPress Fit
Track Reinforcement SystemNot Applicable
Link height (mm)128
ChassisGD
Bolt Bore Diameter (mm)19.38
Wear sensorNo
