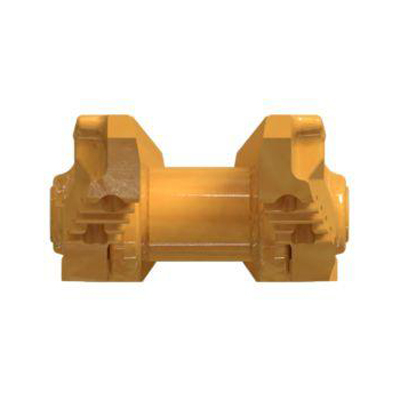

490-0680 Track linkage assembly


Cat® regular duty parts offer a competitive initial purchase price and an advantage over industry standards for the target application.

Features:
Regular load parts are backed by the standard Cat® Parts Warranty.
Conventional duty parts meet industry expectations for durability and technology.

Applications:
Regular load parts are designed for use in medium and light applications as well as applications with low utilization.
Refer to the owner’s manual or contact your local Cat dealer for more information.

Availability:
Product Specifications
Bolt Bore Diameter (mm)19.38
Swivel Bush Track (RBT)No
Internal spacing between links at sprockets (mm)87
Track shoe bolt hole spacing B(mm)133.3
Rail to Pin Boss Outer Diameter (mm)46.6
ChassisGD
Number of Track Sections37
Main Bolt Thread0.75
Grease Track TypeNot Applicable
Seals and lubrication typeSALT
Wear sensorNo
Track shoe bolt hole spacing C(mm)171.4
Rail to bushing OD (mm)39.2
Link height (mm)128
Track Bolt Thread0.75
Track shoe bolt hole spacing A(mm)76.2
Main link type5 Tooth Master
Track Reinforcement SystemNot Applicable
Internal spacing of links at rollers (mm)102.2
Outer spacing of links (mm)182.8
Number of Sections37
Track pitch (mm)202.81
Pin Length (mm)230.1
Bushing Outer Diameter (mm)72.75
Pin retention systemPress Fit
